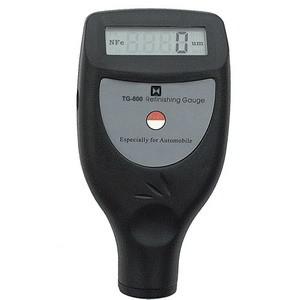

Industry TG800 Coating Thickness Gauge for Automobile

Supply Ability : 50, 000PCS/Year

Payment Terms : L/C, T/T, Western Union, MoneyGram

Place of Origin : china

MOQ : 1 Piece

Price : negotiation

Brand Name : L&D

Model Number : TG-800

Certification : CE ISO SGS

Delivery Time : 3 working days

Name : Coating Thickness Tester

Application : Designed for Car Industry

Operation Principle : Magnetic Induction & Eddy Current (F/NF)

Cable and Software for RS-232c : Yes

Minimum Measuring Area : Diameter 6mm/0.24"

Minimum Sample Thickness : 0.3mm/0.012"

Power Supply : 4*1.5V AAA Batteries

Dimension : 126* 65* 27mm

Weight : 82kg

Trademark : Leader

Transport Package : Standard Exporting Package

Specification : SGS

Origin : Guangdong

HS Code : 9031809090

Port : Shenzhen, China

Contact Now

Coating Thickness Series:
1. Designed for Car industry
2. with built-in probe(s) or separate probe
3. Auto power off
4. Magnetic induction or eddy current operation principle

Standard delivery for TG-800FN:
Main unit
F type probe
N type probe
F calibration base set
N calibration base set
Calibration foil set
Carrying case
1.5V AAA battery
Optional Accessories
Cable and software for RS-232C.

Operation principle	Magnetic induction & eddy current (F/NF)
Measuring range	0-1250μ m/0-50mil
Resolution	0.1μ m/1μ m
Accuracy	± 1-3%N or 2.5μ m
Minimum work piece diameter	F: convex 1.5mm/0.06" , concave 25mm/0.98" NF: convex 3mm/0.12" , concave 50mm/1.97"
Minimum measuring area	diameter 6mm/0.24"
Minimum sample thickness	0.3mm/0.012"
Power supply	4× 1.5V AAA batteries
Dimension	126× 65× 27
Weight	82kg

Industry TG800 Coating Thickness Gauge for Automobile
