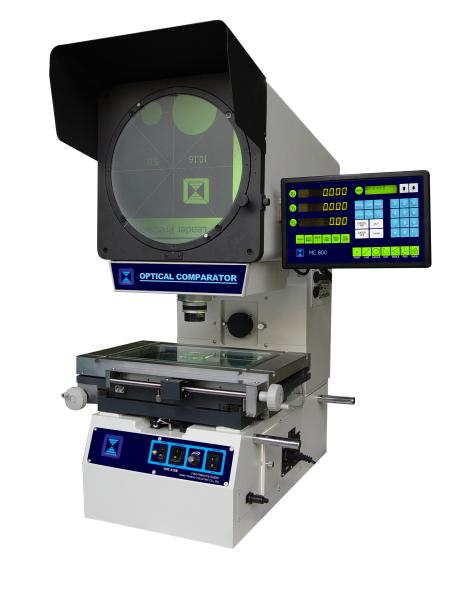

20X Profile Projector Measurement

MOQ : 1 Piece

Supply Ability : 50, 000PCS/Year

Payment Terms : L/C, T/T, Western Union

Place of Origin : China

Price : negotiation

Brand Name : L&D

Model Number : VOE-2515

Certification : CE

Packaging Details : Standard Exporting Package

Model NO. : VOE-2515

Name : Profile Projector/ Optical Comparator

Metal Table Size : 450*280mm

Glass Table Size : 306*196mm

Stage Travel Xy Axis : 250*150*100mm

Resolution : 0.5micron

Measuring Unit : Built-in Linear Scale

Measuring Accuracy : 2.5+L/150 Micron

Screen Diameter : 312mm with 4 Film Clips

Digital Readout : DC-3000

Trademark : L&D

Transport Package : Vacuum & Free Fumigation Plywood Export Package

Specification : SGS

Origin : Dongguan

HS Code : 903149100

Port : Shenzhen, China

Contact Now

Usage:
VOE series Vertical Benchtop Optical Comparator are reliable and affordable non-contact measuring system with high precision and efficiency. VOE series vertical Benchtop Optical Comparator enjoyed the good reputation in the market because of its design and stability. This Optical inspect device is a perfect metrology solution to the contour and surface measurement. This series Measuring machine is a necessary for quality control

VOE series Optical Measurement Device is widely used in calibration labs or on the shop floor.

VOE series Optical Comparator can inspect all kinds of surface and outline of complicated work-pieces, such as cam, screw thread, gear, milling cutter, tool, dies, press components and so on, This bench top optical measurement device is an effective metrical and analytic system for education, research institute and lab.

Feature:
Full erect: Not be affected by upside down and division in the left and right
High precision: (2.5+L/150) μ M is comparable to the accuracy of the foreign similar products
Large travel: Max travel can reach 250*150*100(for the focus)
Large load: High precision table design can afford load of 45 kgs without affecting the measuring performance.
High resolution: 0.5 micron bulit in linear scale

Technical Data :

Reverse

VOE-1510O

VOE-2010O

VOE-2515O

Erect

VOE-1510

VOE-2010

VOE-2515

Metal table's size(mm)

357*228

404*228

450*280

Glass table's size(mm)

210*160

260*160

306*196

Stage Travel X-axis

150mm

200mm

250mm

Stage Travel Y-axis

100mm

150mm

Stage Travel Z-axis

100mm(for focus)

Resolution

0.5µm

Measuring unit

Built-in linear scales

Measuring Accuracy

≤±(2.5+L/150)µm

Screen

Screen Diameter: ¢ 312mmwith 4 film clips

Screen material: fine ground glass

Reference line: Staggered cross and crosshair

Screen rotary range: 0°~360°

Rotary angle resolution:1' or 0.01°

Digital Readout

DC-3000 measuring counter with RS232 output

Illumination

Contour illumination: 24V/150W halogen bulb
Reflected illumination: 24V/150W halogen bulb
Filter (option) for contour illumination

Power

AC110/220V, single phase 50/60Hz, Total power 400W

Cooling

Built-in cooling fans

G.W/N.W

210/160KG

215/165KG

230/180KG

Dimension (L*W*H )

780*780*1120(mm)

780*810*1120(mm)

Technical Data of Objective Lens:

Objective Lens

Magnification

10X

20X

50X

100X

View field diameter

¢ 30

¢ 15

¢ 6

¢ 3

Working Distance(mm)

77.7

44.3

38.4

25.3

Max. Workpiece height

90mm

Standard Delivery:

Digital Readout DC-3000

VOE-10X Objective

Screen Clamp

Foot-Switch

Power Cable

Light source

Optional Delivery:

Measurement Software

Edge Detector

Overlay Charts (3 kinds)

VOE-20X Objective Lens

VOE-50X Objective Lens

VOE-100X Objective Lens

Holder with Clamp

V Block with Clamp

Swivel CenterSupport

Mini-Printer

Rotary table

Calibration Scale
